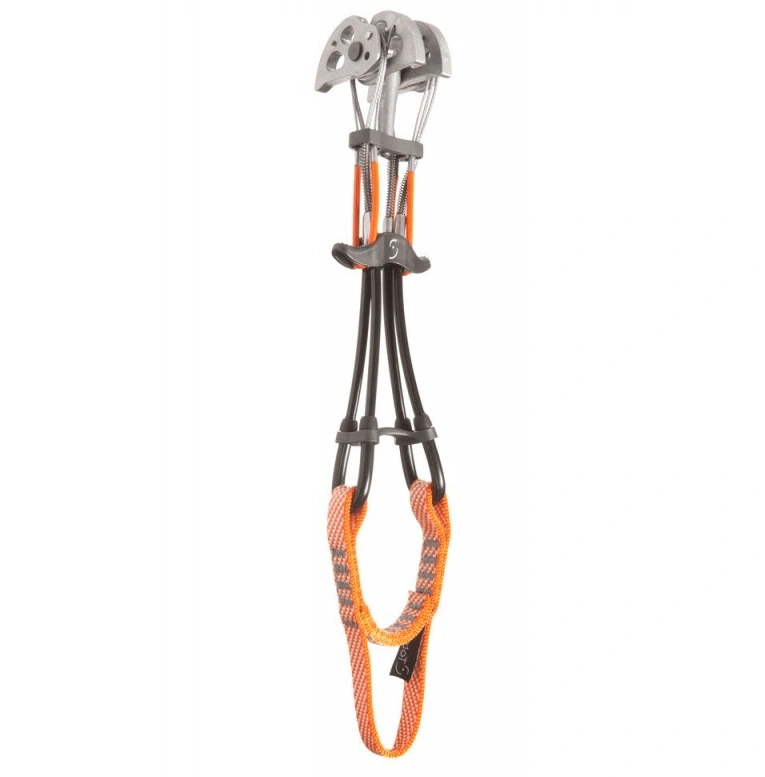

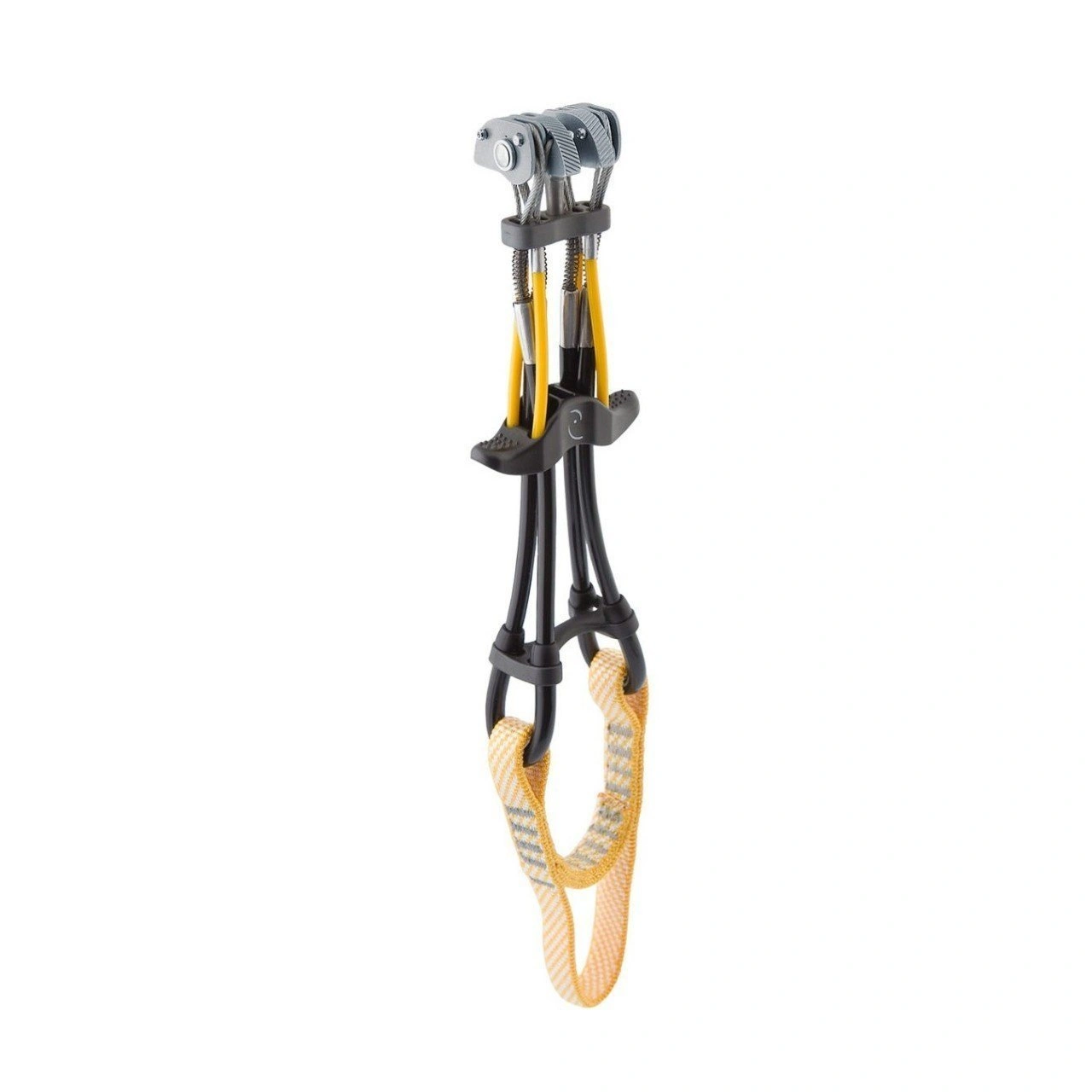

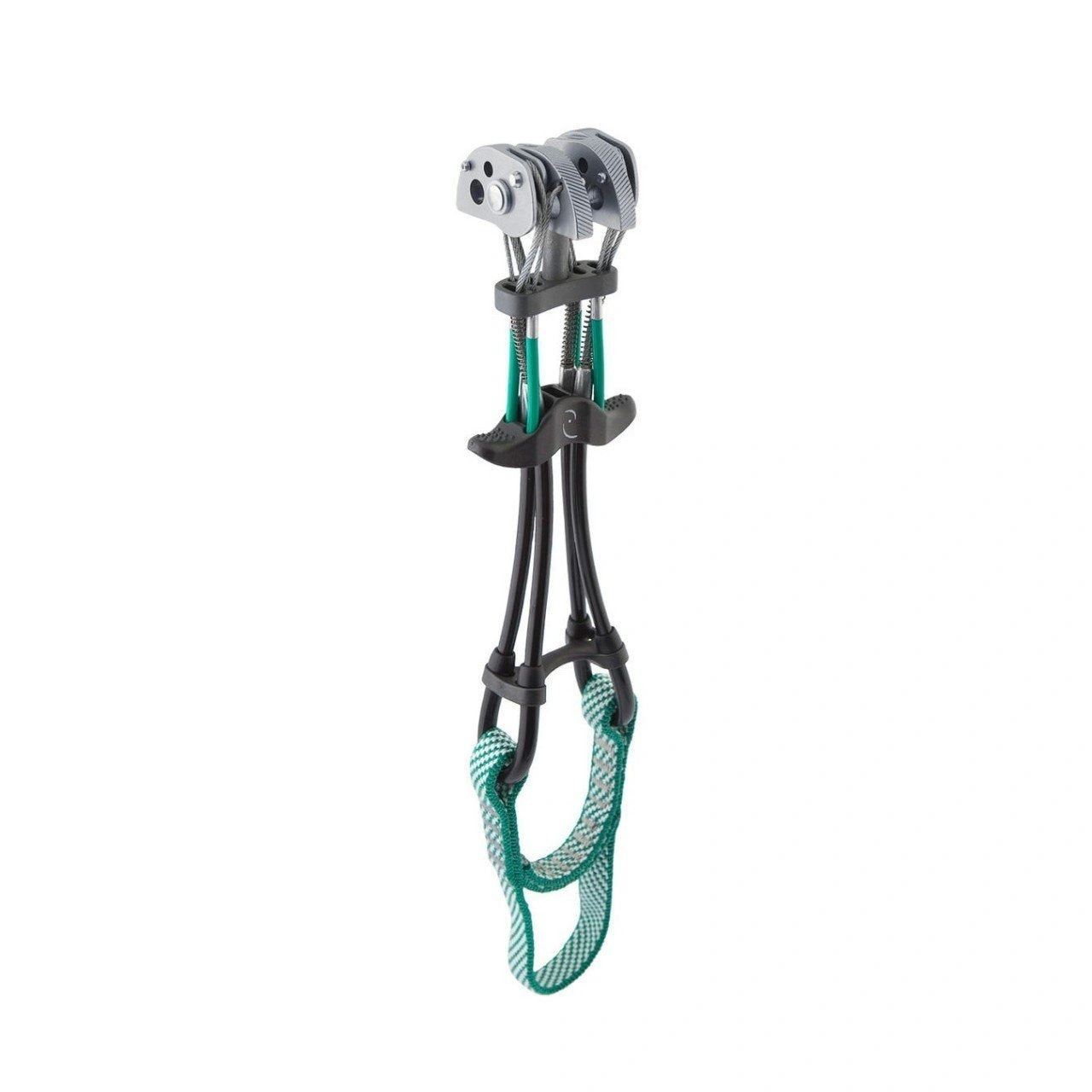

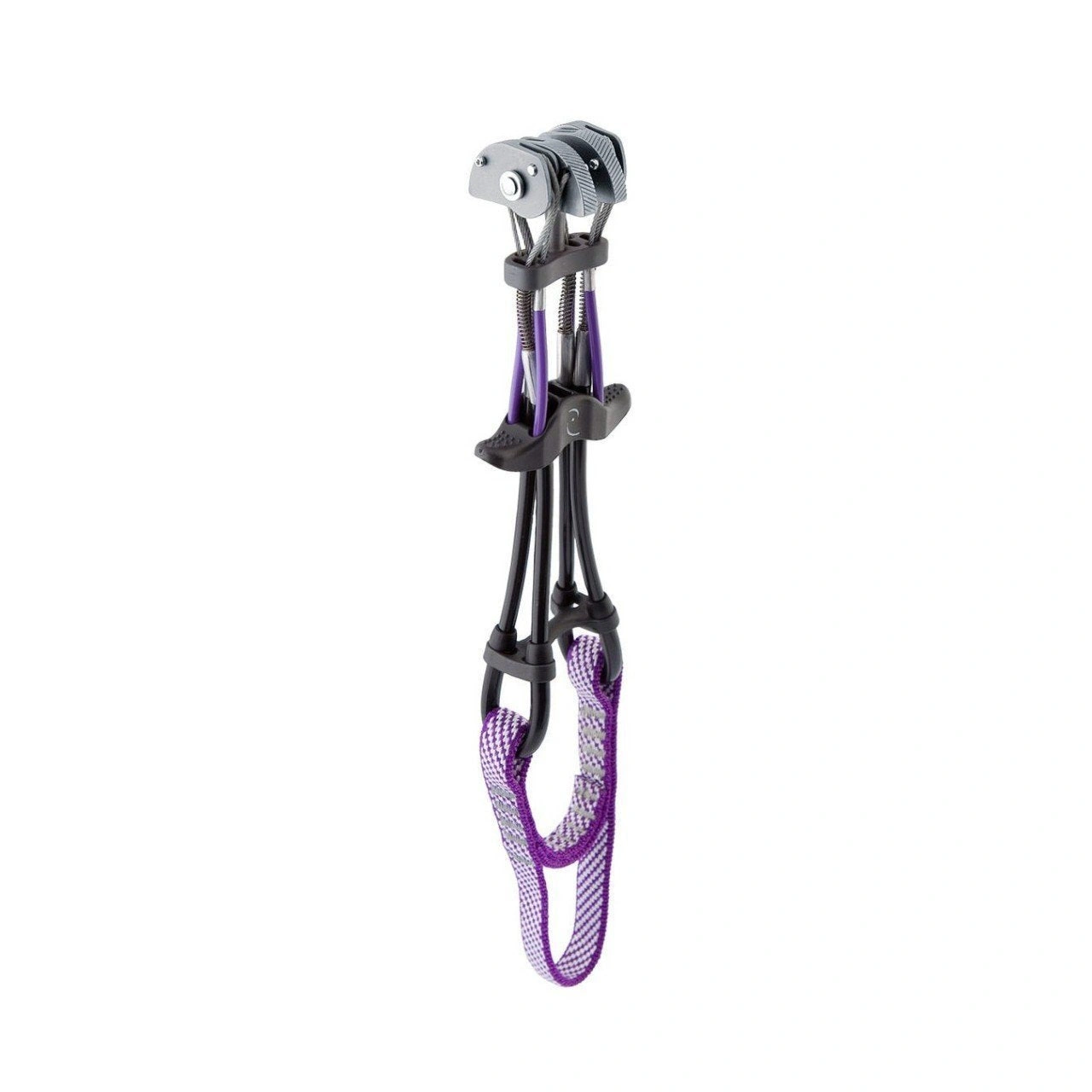

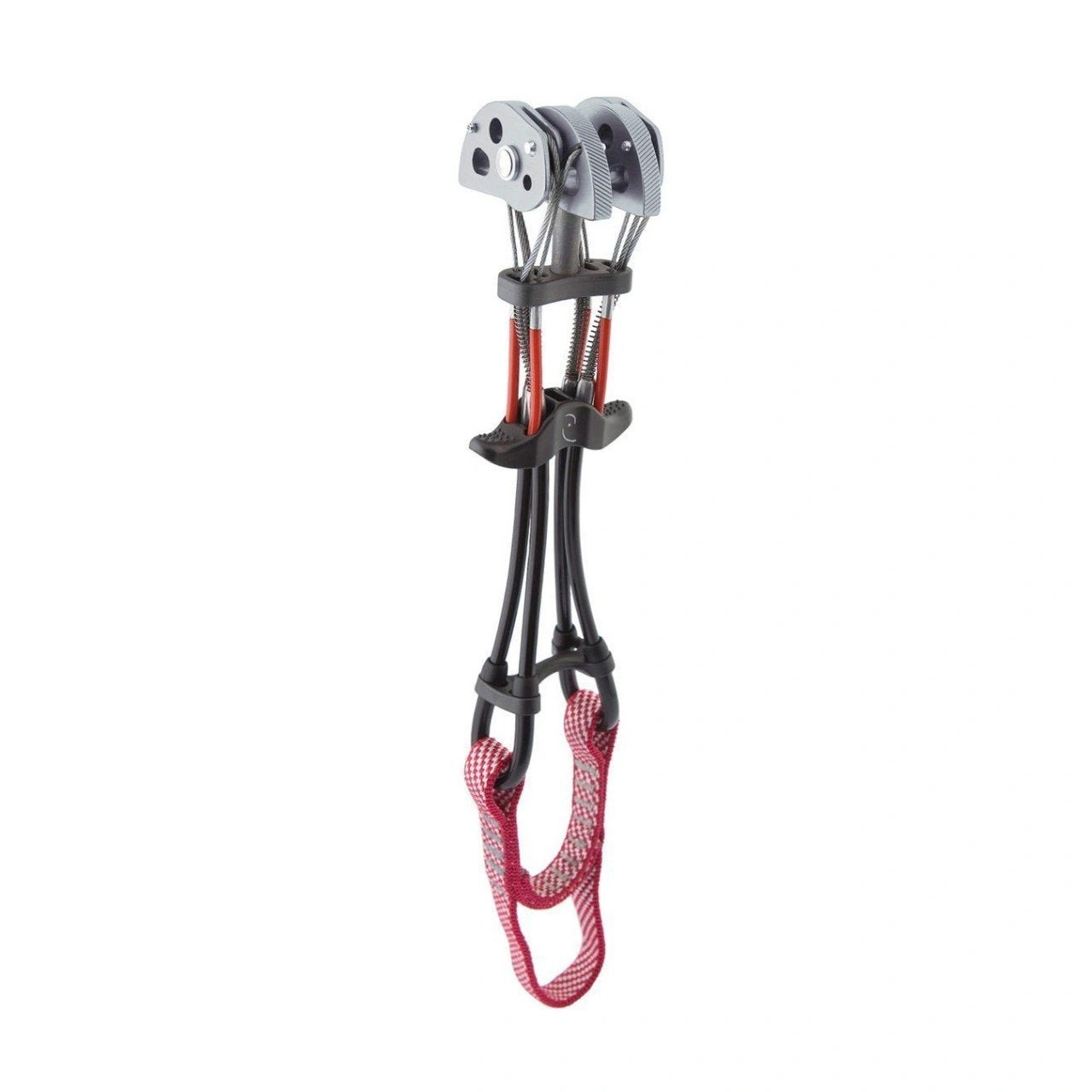

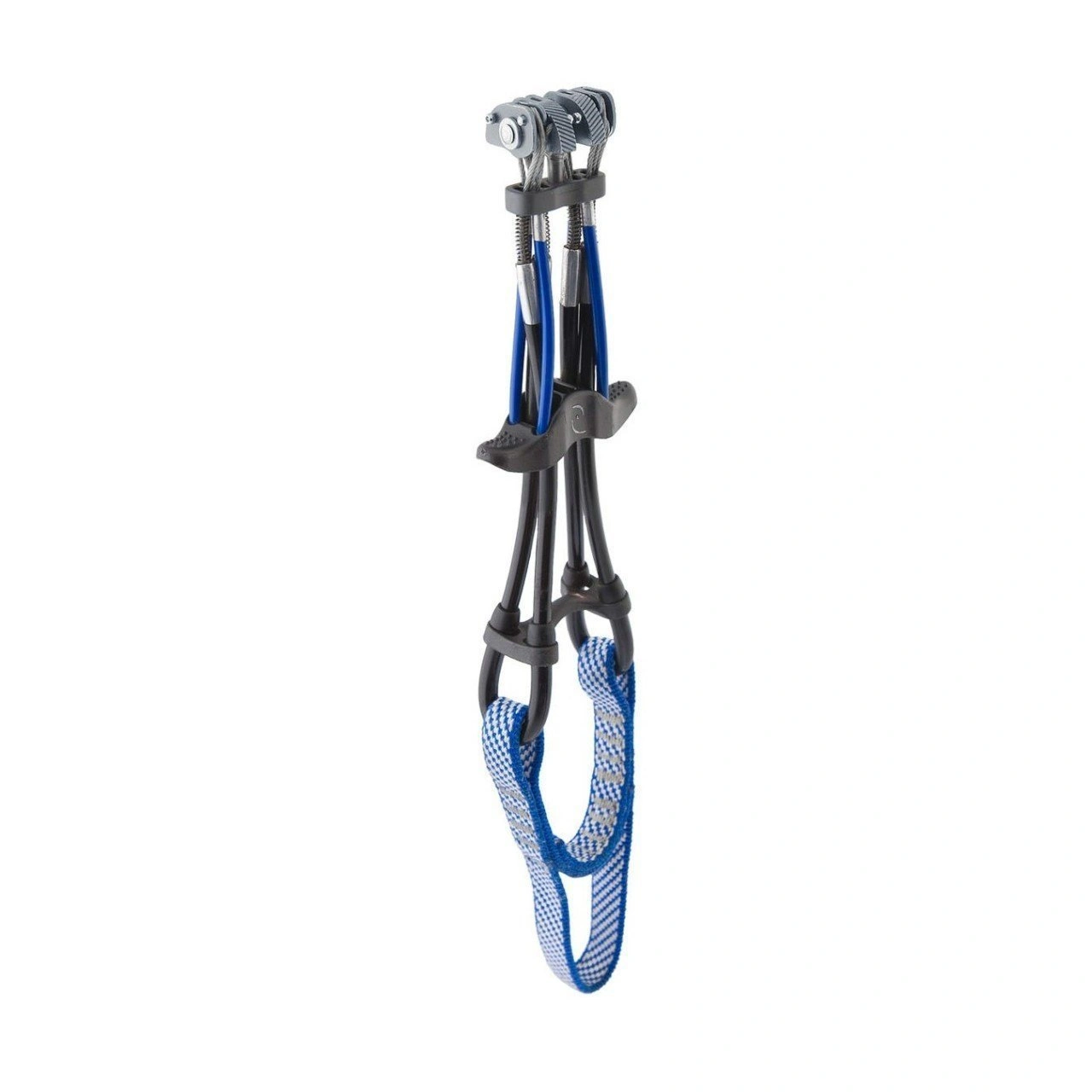

The Totem Cams are a radically different, yet wonderfully simple camming device which sticks in placements that other cams can only dream of!

A super narrow head width and option to load only one side of the cam make these Totem Cams unique. Downward force is optimally transferred to each lobe of the cam, making this one side loading feature particularly significant in irregularly sided cracks where standard designs can lead to inactive cam lobes. Due to the innovative nature of these cams it is well worth reading the instructions supplied with it: particularly the points regarding the optimal range (between 50% and 90% closed), the clipping arrangements, and the lack of cam stops.

Features:

• Individually loaded cam lobes: this means that downward force is optimally transferred to each lobe of the cam. This is particularly significant in irregularly sided cracks where standard designs can lead to inactive cam lobes.
• Super narrow head width: The Totem Cams are approximately 10mm narrower than equivalent sized Camalots - a key advantage in pockets and shallow vertical cracks.
• The option to load only one side of the cam: for aid climbing use it is possible to clip directly into one of the sling attachment points and thereby load only 2 of the cam lobes. This is currently a feature unique to this cam, although it is not recommended for leader protection use as it seriously reduces the stability of the cam.
• Highly flexible: because the totem cam has no real stem it is highly flexible in all directions.
• Smooth action: because the wires attach directly to the cam lobes the Totem cam has a particularly smooth trigger action.
• Because of the innovative nature of the Totem Cam it is well worth reading the instructions supplied with it: particularly the points regarding the optimal range (between 50% and 90% closed), the clipping arrangements, and the lack of cam stops.

Specification

• Camstops: No
• Extendable Sling: No

Sizing
